EXCMA915 PoE Explosion proof camera housing for IP cameras

EXCMA915 PoE  Explosion proof camera housing for IP cameras

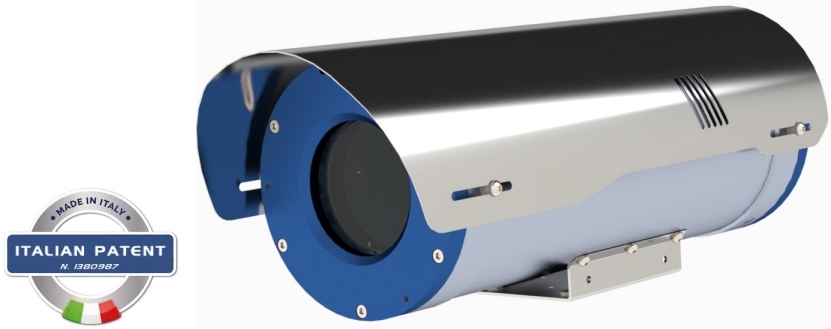

The EXCMA915 PoE is a cylindrical explosion proof housing, made of Anticorodal aluminium with anodic treatment, that ensures an high corrosion resistance and makes the housing particularly indicated for installations in marine, industrial and chemical environments, where there is a potentially explosive atmosphere.

The camera power, heating and ventilation is handled directly from the internal circuit "Smart PoE" (Italian patent), in this way it not need any additional external power sources.

The housing is supplied with two holes with metric thread M25 or 3/4"NPT (the latter is available on request). The housing can be equipped with a full range of solutions: sealing ring for unarmoured cable, sealing ring for steel wire armoured (SWA) cable, barrier gland for unarmoured cable and barrier gland for steel wire armoured (SWA) cable.


Technical data:
- Anticorodal aluminium ATEX housing for hazardous areas
- Certifications EX d for use in Zone 1 and 2, Group IIC (gas) and Ex tb Zone 21 e 22 (dust)
- Weatherproof rating IP66/67/68
- Powered by PoE/PoE+ (802.3af-802.3at compliant)
- The housing is supplied with two threaded holes for metric cable glands M25 (3/4” NPT on request)
- Possibility to wall or ceiling mounting by apposite brackets
- Easy installation and maintenance
