CSI251HI-POE VP

CSI251HI-POE VP

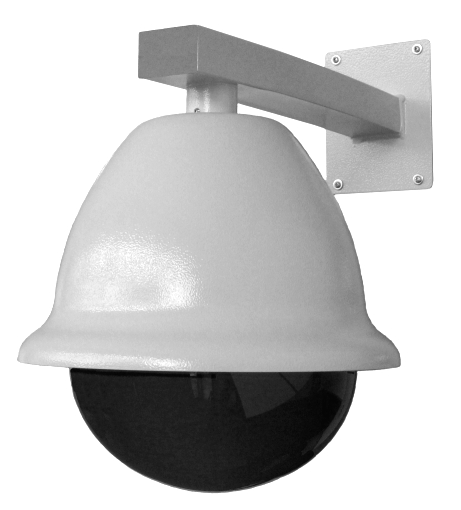

The  CSI251HI-POE VP dome housing is suitable for indoor/outdoor installations of  speed-dome and PTZ cameras that can be directly powered by  HI-PoE/PoE Plus. The Ethernet cable, thanks to the Plug&Play system, can supply both the camera and the fan-assisted heater, ensuring in this way a quick and safe installation.The rugged construction and the IK10 impact protection make this housing an excellent solution for critical environments. There is a wide range of pole/corner adaptors and parapet brackets with junction box available. The STA250 'old style' parapet bracket, dark grey, can be an optimum solution for installations in historical centres.


Technical data:
- Body and sunshield made of aluminium.
- RAL 7035 polyester powder coating (light grey).
- Stainless steel bolts and screws.
- Adaptor plate for AXIS P55xx/Q60xx.
- Ethernet patch-cable for camera connection.
- HI-PoE/PoE plus fan assisted heater.
- External dimensions: Ø 330x398mm with sunshield and ST250 bracket.
- Weatherproof rating: IP66.
- Impact protection rating: IK10.
- Indoor/outdoor installations.
- Cable management.
- Operating temperature with heater: from -20°C to +50°C.
- Weight 6 Kg. (with ST250 wall bracket).
